EI Series and ED Series

Due to advancement in crane technologies, cranes have become of higher capacity and faster in speed. It is also because of this reason Collision risk has increased dramatically.

Crane buffer is a safety device that protects cranes from damage and collision. Adonitech crane buffers are well equipped and protect the crane operator & area in which the crane operates from impact & collision.

How Does It Work?

Dimensions and Specifications

EI Series

ED Series

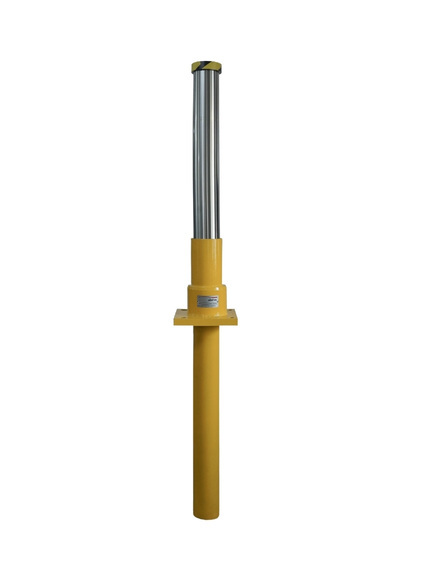

EI Series

EI Series Image

Catalog No/Model	(S) Stroke (mm)	Max Energy / Cycle (NM/C)	Max Shock Force (kN)	Return Force (kN)	Weight (kg)	A1 (mm)	A2 (mm)	Z (mm)	H (mm)	OB (mm)	SAB (mm)	OF (mm)	C (mm)	Bolt Size	OE (mm)
EL 50 x 50	50	3500	70	Extension: 0.5, Compression: 3.2	5	262	–	–	15	65	100	70	14.5	MH14	58
EL 50 x 100	100	6900	70	Extension: 0.3, Compression: 0.6	9	392	–	–	15	65	100	70	14.5	MH14	58
EL 80 x 50	50	7800	160	Extension: 1.0, Compression: 1.9	16	324	–	–	15	85	128	89	20	MH18	79
EL 80 x 100	100	15600	160	Extension: 1.0, Compression: 8.0	22	424	–	–	15	85	128	89	20	MH18	79
EL 100 X 50	50	11500	235	Extension: 1.65, Compression: 18.0	16	302	301	175	20	100	150	120	18.5	M16	99
EL 100 X 100	100	23000	235	Extension: 1.65, Compression: 18.0	22	479	473	245	20	100	150	120	18.5	M16	99
EL 100 X 150	150	34500	235	Extension: 1.65, Compression: 18.0	28	618	612	300	20	100	150	120	18.5	M16	99
EL 100 X 200	200	46000	235	Extension: 1.65, Compression: 18.0	32	756	750	390	20	100	150	120	18.5	M16	99
EL 100 X 400	400	92000	235	Extension: 1.65, Compression: 18.0	46	1349	1345	645	20	100	150	120	18.5	M16	99
EL 100 X 500	500	108000	235	Extension: 1.65, Compression: 18.0	52	–	1616	890	20	100	150	120	18.5	M16	99
EL 100 X 600	600	129000	220	Extension: 1.65, Compression: 18.0	58	–	1888	1040	20	100	150	120	18.5	M16	99
EL 100 X 800	800	156000	200	Extension: 1.65, Compression: 18.0	69	–	2426	1345	20	100	150	120	18.5	M16	99
EL 120 X 100	100	37000	375	Extension: 2.80, Compression: 50.0	34	471	467	270	20	120	220	170	26.5	M24	127
EL 120 X 150	150	55000	375	Extension: 2.80, Compression: 50.0	39	597	593	330	20	120	220	170	26.5	M24	127
EL 120 X 200	200	74000	375	Extension: 2.80, Compression: 50.0	43	724	720	390	20	120	220	170	26.5	M24	127
EL 120 X 300	300	108000	375	Extension: 2.80, Compression: 50.0	53	973	969	520	20	120	220	170	26.5	M24	127
EL 120 X 400	400	144000	375	Extension: 2.80, Compression: 50.0	87	1225	1221	680	25	120	220	170	26.5	M24	127
EL 120 X 600	600	216000	375	Extension: 2.80, Compression: 50.0	105	–	1725	915	25	120	220	170	26.5	M24	127
EL 120 X 800	800	259000	330	Extension: 2.80, Compression: 50.0	110	–	2332	1290	25	120	220	170	26.5	M24	127
EL 120 X 1000	1000	299000	300	Extension: 2.80, Compression: 50.0	116	–	2836	1360	25	120	220	170	26.5	M24	127
EL 130 X 250	250	115000	475	Extension: 3.20 Compression: 50.0	72	897	894	545	25	130	270	210	26.5	M24	129
EL 130 X 300	300	138000	475	Extension: 3.20 Compression: 50.0	79	1029	1025	605	25	130	270	210	26.5	M24	129
EL 130 X 400	400	184000	475	Extension: 3.20 Compression: 50.0	90	1293	1289	735	25	130	270	210	26.5	M24	129
EL 130 X 600	600	242000	400	Extension: 3.20 Compression: 45.0	119	–	1917	1055	25	130	270	210	26.5	M24	129
EL 130 X 800	800	311000	400	Extension: 3.20 Compression: 45.0	140	–	2445	1345	25	130	270	210	26.5	M24	129
EL 150 X 115	115	71000	645	Extension: 5.00 Compression: 65.7	56	516	513	320	25	150	270	210	26.5	M24	149
EL 150 X 150	150	94000	645	Extension: 5.00 Compression: 65.7	59	606	602	355	25	150	270	210	26.5	M24	149
EL 150 X 400	400	253000	645	Extension: 5.00 Compression: 62.4	98	1257	1245	710	25	150	270	210	26.5	M24	149
EL 150 X 500	500	316000	645	Extension: 5.00 Compression: 75.5	110	–	1498	770	25	150	270	210	26.5	M24	149
EL 150 X 600	600	380000	645	Extension: 5.00 Compression: 75.5	120	–	1752	875	25	150	270	210	26.5	M24	149
EL 150 X 800	800	515000	640	Extension: 5.00 Compression: 68.0	165	–	2363	1240	25	150	270	210	26.5	M24	149
EL 150 X 1000	1000	587000	600	Extension: 5.00 Compression: 61.0	180	–	2880	1595	25	150	270	210	26.5	M24	149

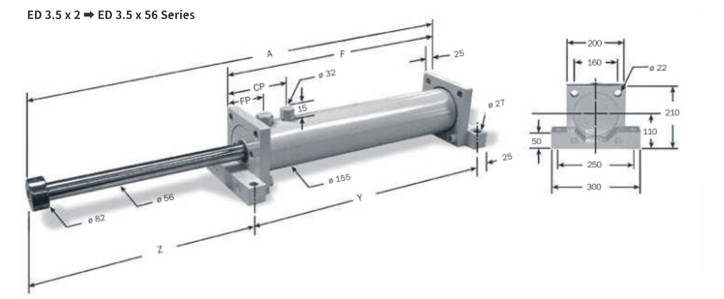

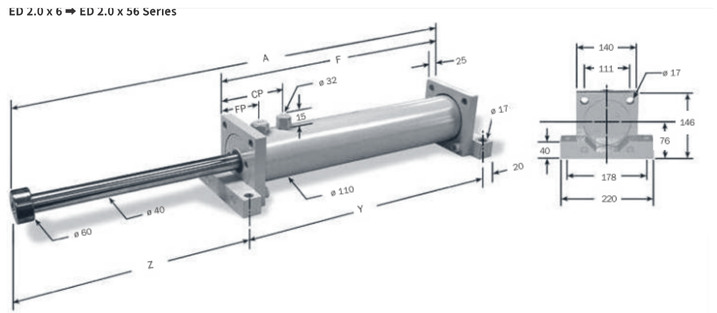

ED Series

ED-EI Series Image

Catalog No/Model	Stroke (mm)	(ET) Max Energy / Cycle (NM/C)	(ETC) Max Energy / Cycle (NM/H)	(Fp) Max Shock Force (N)	Nominal Return Force (BA* N)	Nominal Return Force w/o (BA* N)	A (mm)	F (mm)	Y (mm)	Z (mm)	With BA		CP** w/o BA* mm	Weight (kg)
											CP BA* (mm)	FP BA* (mm)
ED 1.5X2	50	3200	189000	70060	220	320	310	208	240	86	139	86	41	10
ED 1.5X4	100	6100	368000	70060	220	410	410	258	290	136	139	86	41	12
ED 1.5X8	200	12200	732500	70060	220	525	613	360	392	237	139	86	41	13
ED 1.5X10	250	15200	781000	70060	220	600	715	411	443	288	139	86	41	14
ED 1.5X12	300	18300	877900	70060	220	920	817	462	494	339	139	86	41	16
ED 1.5X14	350	20900	972900	70060	220	1120	918	512	544	390	139	86	41	17
ED 1.5X16	400	23300	1069800	60060	220	1120	1019	563	595	440	139	86	41	18
ED 1.5X18	450	25300	1166700	47820	220	1120	1121	614	646	491	139	86	41	19
ED 1.5X20	500	27200	1263600	38920	220	1120	1223	665	697	542	139	86	41	20
ED 1.5X24	600	30500	1457400	27800	220	1120	1427	767	799	644	139	86	41	23
ED 1.5X28	713	33600	1649300	21130	220	1120	1629	868	900	745	139	86	41	20
ED 1.5X32	813	36500	1839300	16460	220	1120	1830	968	1000	846	139	86	41	23

ED 2.0 X 6	152	17200	862100	111200	535	870	553	339	379	194	176	96	46	23
ED 2.0 X 8	203	23000	913700	111200	535	1040	655	390	430	245	176	96	46	25
ED 2.0 X 10	250	28800	1033200	111200	535	1340	757	441	481	296	176	96	46	23
ED 2.0 X 12	300	34300	1152700	111200	535	2290	859	492	532	347	176	96	46	25
ED 2.0 X 14	350	38700	1272100	111200	535	2290	960	543	583	397	176	96	46	27
ED 2.0 X 16	400	43200	1391600	111200	535	2290	1062	594	634	448	176	96	46	29
ED 2.0 X 18	450	47600	1511100	111200	535	2290	1164	645	685	499	176	96	46	31
ED 2.0 X 20	500	51900	1628300	111200	535	2290	1265	695	735	550	176	96	46	33
ED 2.0 X 24	600	60800	1867200	111200	535	2290	1469	797	837	652	176	96	46	36
ED 2.0 X 28	700	69800	2106200	111200	535	2290	1672	899	939	753	176	96	46	42
ED 2.0 X 32	800	70700	2527900	111200	535	2290	1953	1079	1119	854	256	176	46	49
ED 2.0 X 36	900	101200	2762200	100000	535	2290	2151	1179	1219	952	256	176	46	53
ED 2.0 X 40	1000	101400	2996500	84500	535	2290	2351	1279	1319	1052	256	176	46	56
ED 2.0 X 48	1200	114500	3465000	60000	535	2290	2751	1479	1519	1252	256	176	46	64
ED 2.0 X 56	1400	125000	3957000	35100	535	2290	3171	1689	1729	1462	256/975	176	46	73

ED 3.0 X 2	50	9600	578500	222400	670	1130	336	203	253	108	128	61	46	21
ED 3.0 X 3	75	14600	659000	222400	710	1810	387	229	279	133	128	61	46	22
ED 3.0 X 5	125	24200	805700	222400	735	2895	489	280	330	184	128	61	46	25
ED 3.0 X 8	200	35700	1021500	222400	755	2895	640	355	405	260	128	61	46	29
ED 3.0 X 10	250	43200	1168300	222400	780	2895	742	406	456	311	128	61	46	32
ED 3.0 X 12	300	50700	1315000	222400	780	2895	844	457	507	362	128	61	46	35
ED 3.0 X 14	350	62900	1605700	222400	800	2895	995	558	608	412	178	111	46	43
ED 3.0 X 16	400	70400	1752400	222400	800	2895	1097	609	659	463	178	111	46	45
ED 3.0 X 18	450	77900	1899200	222400	800	2895	1199	660	710	514	178	111	46	48
ED 3.0 X 20	500	85400	2046000	222400	800	2895	1301	711	761	565	178	111	46	51
ED 3.0 X 24	600	100300	2336600	222400	800	2895	1504	812	862	667	178	111	46	57
ED 3.0 X 28	700	115300	2630100	222400	800	2895	1707	914	964	768	178	111	46	62
ED 3.0 X 32	800	130200	2920700	180200	800	2895	1910	1015	1065	870	178	161	46	68
ED 3.0 X 36	900	147700	3349500	160100	800	2895	2156	1164	1214	967	228	161	46	77
ED 3.0 X 40	1000	159600	3637200	140000	800	2895	2356	1264	1314	1067	228	161	46	85
ED 3.0 X 48	1200	179700	4212800	95600	825	2895	2756	1464	1514	1267	228	161	46	94
ED 3.0 X 56	1400	196700	4788300	55600	825	2895	3156	1664	1714	1467	228/947	161	46	106
ED 3.0 X 60	1500	206800	5116300	53200	825	2895	3384	1778	1828	1581	228/1004	161	46	106
ED 3.0 X 64	1629	217100	5210400	53200	825	2895	3688	1980	2030	1683	439/1527	260	46	110
ED 3.0 X 72	1830	238000	6242000	53200	825	2895	4012	2092	2142	1895	439/1727	260	46	118

ED 3.5 X 2	50	13000	781000	300250	960	2020	354	244	294	85	134	77	52	33
ED 3.5 X 4	100	26000	993500	300250	1020	2710	456	295	345	136	134	77	52	37
ED 3.5 X 6	150	38800	1161900	300250	1160	4480	556	345	395	186	134	77	52	41
ED 3.5 X 8	200	50900	1333600	300250	1180	4480	658	396	446	237	134	77	52	45
ED 3.5 X 10	250	60800	1505400	300250	1200	4480	760	447	497	288	134	77	52	49
ED 3.5 X 12	300	70800	1677200	300250	1200	4480	862	498	548	339	134	77	52	53
ED 3.5 X 16	400	90500	2017300	300250	1225	4480	1064	599	649	440	134	77	52	60
ED 3.5 X 20	500	118800	2546100	300250	1225	4480	1323	756	806	542	189	132	52	74
ED 3.5 X 24	600	138700	2889600	300250	1250	4480	1527	858	908	644	189	132	52	81
ED 3.5 X 28	700	158500	3229700	300250	1250	4480	1729	959	1009	745	189	132	52	89
ED 3.5 X 32	800	178400	3573200	300250	1250	4480	1933	1061	1111	847	189	132	52	97
ED 3.5 X 36	900	198300	3916800	260200	1250	4480	2137	1163	1213	949	189	132	52	105
ED 3.5 X 40	1000	216800	4256900	215700	1250	4480	2339	1264	1314	1050	189	132	52	112
ED 3.5 X 48	1200	247200	4930500	155700	1250	4480	2739	1464	1514	1250	189	132	52	128
ED 3.5 X 56	1400	273300	5604000	112500	2100	4480	2739	1464	1514	1250	189/908	132	52	128

ED 4.0 X 2	50	15700	943700	355900	1100	1900	430	294	344	111	206	108	64	64
ED 4.0 X 4	100	31200	1534300	355900	1200	2160	532	345	395	162	206	108	64	70
ED 4.0 X 6	150	46279	1756700	355900	1200	3050	632	395	445	212	206	108	64	76
ED 4.0 X 8	200	62000	1987900	355900	1200	4370	735	447	497	263	206	108	64	82
ED 4.0 X 10	250	77100	2210300	355900	1200	5465	836	497	547	314	206	108	64	87
ED 4.0 X 12	300	92600	1855100	355900	1225	4440	1032	642	692	365	300	202	64	108
ED 4.0 X 16	400	123100	3304300	355900	1225	5650	1234	743	793	466	300	202	64	120
ED 4.0 X 20	500	154000	3757900	355900	1245	5145	1438	845	895	568	300	202	64	131
ED 4.0 X 24	600	184800	4211500	355900	1245	5675	1642	947	997	670	300	202	64	144
ED 4.0 X 28	700	215100	4660700	355900	1245	5675	1844	1048	1098	771	300	202	64	157
ED 4.0 X 32	800	240500	5114300	355900	1245	5675	2048	1150	1200	873	300	202	64	170
ED 4.0 X 36	900	265900	5567900	355900	1245	5675	2252	1252	1302	975	300	202	64	183
ED 4.0 X 40	1000	289900	6017100	355900	1245	5675	2454	1353	1403	1076	300	202	64	195
ED 4.0 X 48	1200	329300	6919900	200000	1245	5675	2854	1556	1606	1273	300	202	64	220

Celvis Mount

ED-EI Series Image

							Cylinder Celvis Dimensions						Piston Celvis Dimensions
Catalog No/Model	A (mm)	B (mm)	D (mm)	E (mm)	HD/ED F (mm)	HDA F (mm)	CA (mm)	CB (mm)	CC (mm)	CD (mm)	CE (mm)	CF (mm)	FA (mm)	FB (mm)	FC (mm)	FD (mm)	FE (mm)
ED 3.0 X 2	432	130	38	90	202	235	60	38	25	30	37	65	69	32	25	99	50
ED 3.0 X 3	483	130	38	90	229	261	60	38	25	30	37	65	69	32	25	99	50
ED 3.0 X 5	585	130	38	90	280	312	60	38	25	30	37	65	69	32	25	99	50
ED 3.0 X 8	736	130	38	90	355	387	60	38	25	30	37	65	69	32	25	99	50
ED 3.0 X 10	838	130	38	90	406	438	60	38	25	30	37	65	69	32	25	99	50
ED 3.0 X 12	940	130	38	90	457	489	60	38	25	30	37	65	69	32	25	99	50
ED 4.0 X 2	570	200	65	140	294	304						90	100	60	50	150	100
ED 4.0 X 4	672	200	65	140	345	355						90	100	60	50	150	100
ED 4.0 X 6	772	200	65	140	395	405						90	100	60	50	150	100
ED 4.0 X 8	875	200	65	140	477	457						90	100	60	50	150	100
ED 4.0 X 10	976	200	65	140	497	507						90	100	60	50	150	100

Optional Piston Return Sensor Rod ED 1.5 2.0 4.0

ED-EI Series Image

Catalog/Model No	Sensor (mm)	Height (mm)
ED 1.5	86	20
ED 2.0 X 6-28	96	16
ED 2.0 X 32-56	176	16
ED 4.0 X 2-10	108	9
ED 4.0 X 12-48	202	9

ED 3.0 and 3.5

ED-EI Series Image

Catalog/Model No	Sensor (mm)	Height (mm)
ED 3.0 X 2-12	61	15
ED 3.0 X 14-32	111	15
ED 3.0 X 36-60	161	15
ED 3.5 X 2-16	77.4	9
ED 3.5 X 20-56	132.4	9

ED 1.5 2.0 3.0 3.5 and 4.0 BA

ED-EI Series Image

Catalog/Model No	Sensor (mm)	Height (mm)
ED 1.5	86	20
ED 2.0 X 6-28	96	16
ED 3.0 X 32-56	176	16
ED 3.5 X 2-12	61	15
ED 3.0 X 14-32	111	15
ED 3.0 X 36-60	161	15
ED 3.5 X 2-16	77.4	9
ED 3.5 X 20-56	132.4	9
ED 4.0 X 2-10	108	9
ED 4.0 X 12-48	202	9

Urethrane Cap

ED-EI Series Image

Catalog/Model No	Diameter A (mm)	B (mm)
ED 1.5	60	4
ED 2.0	65	4
ED 3.0	70	4

Model Code Ordering Format

Select quantity

EI 120 x 100

Select EI Series model from
Engineering Data Chart

Select mounting method

FS (Flange Front)
RS (Flange Rear)

Additional Options

B Protective Bellows
C Safety Cable

APPLICATION
DATA

APPLICATION DATA (Required for all models)

Vertical / Horizontal Motion
Weight
Impact Velocity
Propelling Force (if any)
Cycles / Hour
Temperature / Environment
Applicable Standards

Product Overview

Quantity	Model	Description
4	EL 120*100	FS – Flange Front, RS – Flange Rear, B – Protective Bellows, C – Safety Cable

Model Description Breakdown

Code	Explanation
4	Quantity: Specifies that you need 4 units of the product.
EL	Model or series of the product.
120	Represents the buffer stroke (distance the buffer compresses).
100	Indicates the maximum energy absorption capacity or other key specifications.
FF	Flange Front: Mounting option, the buffer will have a front flange for installation.
FR	Flange Rear: Mounting option, the buffer will also have a rear flange for flexibility in installation.
B	Protective Bellows: Protective covering to shield the buffer rod from dust, dirt, and contaminants, increasing durability.
C	Safety Cable: Ensures the buffer remains secure and prevents it from detaching or falling in extreme situations.

Application Data for Buffer Configuration

The following information is necessary to configure the right buffer for your application:

Vertical/Horizontal Motion

Specify if the buffer will be used for vertical or horizontal movements.

Weight

Indicate the weight of the moving object or load in kilograms.

Impact Velocity

Provide the speed at which the object impacts the buffer (in m/s).

Propelling Force (if any)

Mention any external force propelling the load, such as a motor, gravity, or manual force.

Cycles/Hour

Indicate how many times the buffer will be used in one hour (frequency of operation).

Temperature/Environment

Specify the operating temperature range and environmental conditions (e.g., dusty, wet, chemical exposure).

Applicable Standards

Mention any industry or safety standards the buffer must comply with (e.g., ISO, DIN).

How to Buy

For technical support & service please contact Mr. Krishnakant (Marketing Manager) – +91 93228 84965 or fill out the form

Crane Buffer

EI Series and ED Series

How Does It Work?

Absorption

Dissipation

Crane Buffers EI Series
and ED Series Catalogue

Sizing
Calculator

How to Buy

Enquiry

Quotation

Purchase Order

Payment

Delivery

Final Payment

Crane Buffer

EI Series and ED Series

How Does It Work?

Absorption

Dissipation

Crane Buffers EI Series and ED Series Catalogue

Sizing Calculator

How to Buy

Enquiry

Quotation

Purchase Order

Payment

Delivery

Final Payment

Crane Buffers EI Series
and ED Series Catalogue

Sizing
Calculator
