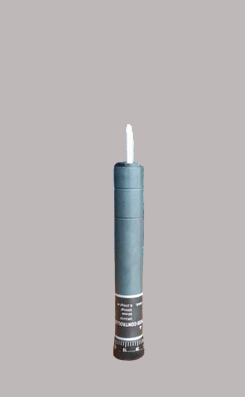

Hydraulic Feed Rate Controllers
At Adoni Tech, we design Hydraulic Feed Rate Controllers to provide unmatched control over the speed and precision of your machine’s movements. Whether it’s drilling, milling, or material handling, our controllers deliver consistent performance, ensuring safety and efficiency in every application.
A Hydraulic Feed Rate Controller is a device used in industrial machines to regulate the speed at which a machine part moves. It controls the motion smoothly and consistently, ensuring precision and safety during operations. The controller uses hydraulic fluid to absorb and manage forces, enabling the operator to fine-tune the feed rate as needed.
Why Choose Our Hydraulic Feed Rate Controllers?
Precise Speed Control
Ensures accurate movement for delicate operations, reducing errors and improving productivity.
Durable Design
Built with high-quality materials to withstand heavy-duty industrial environments.
Smooth Performance
Eliminates jerky motions and enhances the lifespan of your equipment.
Versatile Applications
Ideal for various machines like drilling equipment, conveyor systems, and more.
Low Maintenance
Designed for reliability with minimal upkeep, saving you time and costs.
Key Features
Hydraulic Cushioning
Absorbs shocks and controls motion for smooth operation
Adjustable Flow Settings
Fine-tune the speed and feed rate to suit your specific application
Compact and Lightweight Design
Easy to install without adding bulk to your machinery
Corrosion-Resistant Build
Perfect for harsh industrial environments
Wide Compatibility
Works with various machine types across industries
How Does It Work?
The controller has a cylinder filled with hydraulic fluid.
When a machine part moves, the fluid flows through adjustable channels or valves in the controller.
This process slows down or regulates the motion, ensuring steady and smooth movement.
What is it Used For?
Ensure Precision
They help in controlling the movement of machine parts for accurate operations like drilling or cutting
Improve Safety
By regulating motion, they reduce the chances of sudden jerks or accidents.
Protect Equipment
Smooth movements prevent wear and tear on machines, extending their lifespan
Enhance Productivity
Consistent and reliable control improves the quality of output and reduces downtime.
Common Applications

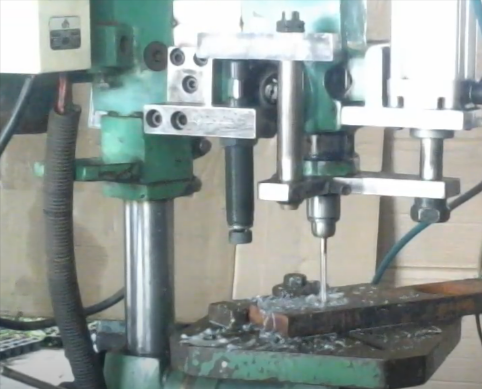

Drilling Machines
Controls the feed of drill bits into the material for precise holes
Press Machines
Regulates the descent of press tools for consistent shaping
Conveyor Systems
Maintains steady movement of items for efficient material handling
Cutting Machines
Ensures smooth feed rates for clean and accurate cuts
Dimensions and Specifications
Technical Details
| Model | A | B | C | D | E | F | T |
|---|---|---|---|---|---|---|---|
| TSC – 25 | 202 | 136 | 30 | 19.1 | 25.4 | 207 | 30 |
| TSC – 50 | 254 | 172 | 58 | 14.6 | 25.4 | 262 | 30 |
| TSC – 75 | 336 | 194.0 | 74.0 | 14.6 | 25.4 | 344 | 50 |
| TSC – 100 | 390 | 256 | 103 | 14.6 | 25.4 | 398 | 50 |
| TSC – 125 | 523 | 290 | 128 | 14.6 | 25.4 | 531 | 50 |
Performance Table
| Model | Stroke (mm) | Resistance Force (Min. N) | Resistance Force (Max. N) | Speed Rates (m/min -1) | Speed Rates (m/min -2) | Return Spring Force (Min. N) | Return Spring Force (Max. N) | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| TSC – 25 | 30 | 30 | 3700 | 12-40 | 0.015-15 | 15 | 32 | 445 |
| TSC – 50 | 60 | 35 | 3700 | 12-40 | 0.015-15 | 15 | 32 | 540 |
| TSC – 75 | 75 | 40 | 3700 | 12-40 | 0.015-15 | 15 | 32 | 648 |
| TSC – 100 | 100 | 45 | 3700 | 12-40 | 0.015-15 | 15 | 32 | 595 |
| TSC – 125 | 125 | 45 | 3700 | 12-40 | 0.015-15 | 16 | 40 | 975 |
