Viscous Compressibility Damper

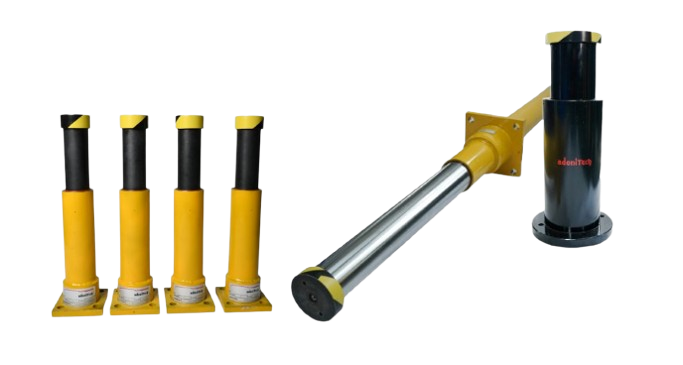

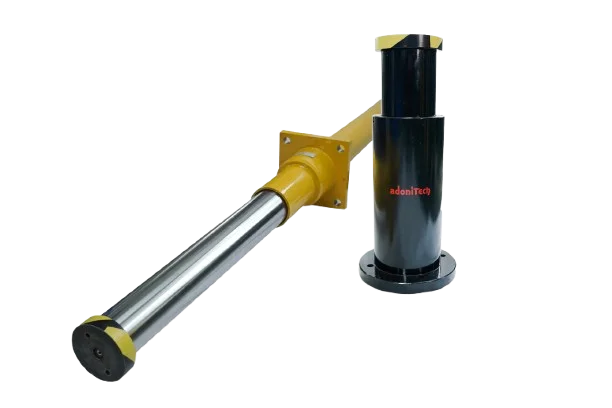

Viscous Compression Dampers for High-Temperature Impact Applications Engineered for extreme environments, the Adoni Tech VCD Series delivers high-impact energy absorption with unmatched reliability. Whether it’ s railway sliding stops, overhead cranes, steel mills, or defence platforms, this compact solution ensures smooth deceleration and long-term durability.
Technology: Viscous Compressibility
Inspired by requirement of the Steel Industry, the VCD uses a high-performance silicone fluid that is both viscous and compressible. This single-medium system performs dual roles shock absorption and elastic return eliminating the need for gas chambers or mechanical springs.
Inspired by requirement of the Steel Industry, the VCD uses a high-performance silicone fluid that is both viscous and compressible. This single-medium system performs dual roles shock absorption and elastic return eliminating the need for gas chambers or mechanical springs.
Performance Highlights
Handles extreme kinetic loads with controlled fluid compression
Ideal for heavy-duty industrial and defence-grade applications
Ensures smooth deceleration under fluctuating impact conditions
Built for Durability
Maintenance-free design with specialized leak-proof seals
Withstands rapid recoil cycles and high-temperature environments
Compact form factor for space-constrained installations
Customization Options
Adjustable Hardness Variants available for load-specific tuning
Special Flanges or Impact Heads as per requirement.
Tailored deceleration profiles for dynamic industrial needs
Key Features
| Feature | Description |
|---|---|
| Silicone Elastomer Core | High-temp resistant, dual-function fluid |
| Compact Size | Space-saving design for versatile mounting |
| Self-Reset Mechanism | Automatic return without external springs |
| High-Temperature Suitability | Performs reliably in elevated thermal zones |
Dimensions and Specifications
VCD Series
VCD Series
VCD Series
Technical Details
| Model | Maximum Energy (KJ) | Buffer Stroke (MM) | Tension (KN) | Compression (KN) | Dynamic Responsiveness (KN) | Max Dynamic Response (KN) |
|---|---|---|---|---|---|---|
| BC5A-105 | 25 | 105 | 18.5 | 140.7 | 167 | 310 |
| BC5B-130 | 50 | 120 | 58.0 | 259.9 | 310 | 540 |
| BC5C-140 | 75 | 140 | 49.0 | 328.4 | 400 | 700 |
| BC5D-160 | 100 | 160 | 59.5 | 380.0 | 470 | 820 |
| BC5E-180 | 150 | 180 | 117.0 | 546 | 640 | 1100 |

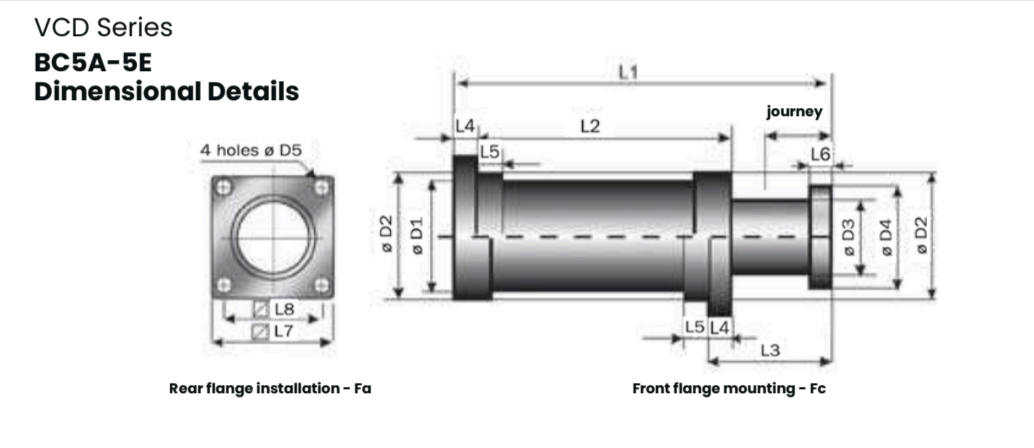

Dimension Table
| Model | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | D1 | D2 | D3 | D4 | D5 | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BC5A-105 | 415 | 275 | 140 | 20 | 30 | 15 | 135 | 105 | 116 | 116 | 87 | 120 | 14 | 25 |
| BC5B-130 | 500 | 325 | 175 | 25 | 33 | 30 | 155 | 125 | 142 | 142 | 115 | 138 | 14 | 40 |
| BC5C-140 | 520 | 315 | 205 | 30 | 36 | 35 | 175 | 140 | 160 | 160 | 132 | 158 | 18 | 45 |
| BC5D-160 | 585 | 350 | 235 | 35 | 40 | 40 | 215 | 170 | 180 | 180 | 153 | 185 | 22 | 73 |
| BC5E-180 | 670 | 405 | 265 | 40 | 45 | 45 | 250 | 195 | 215 | 215 | 182 | 220 | 26 | 117 |
